STATIC GROUNDING REEL S-RL ALPTEC

 STATIC GROUNDING REEL

The ATEX approved Static Grounding Reels have a self-retracting cable drum and instant lock mechanism to prevent cable becoming tangled.

Standard S-RL model includes a 7m (23ft.) polyurethane jacketed stainless steel cable. An ATEX approved, heavy duty grounding clamp with replaceable stainless steel tips is attached to the cable for a solid connection to the grounding surface. S-RL Reels are also available with 15m (49ft.) and 20m (65ft.) length cables

Features & Benefits:
◆The housing and base plate are constructed of stainless steel.
◆The enclosed housing prevents the cable from being exposed to corrosive and harsh environments.
◆The self-storing cable design prevents personnel from being exposed to trip hazards. The self-retracting cable mechanism keeps the cable stored in safe organized manner.
◆An instant lock mechanism holds the cable at the desired extended length

👉 MOHON DIBACA SEBELUM ORDER / MEMBELI 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga tertera berlaku untuk per unit
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
(karena sekian banyak item admin tidak selalu update di etalase ).
✅ Silahkan call/chat sebelum order/membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING
WhatsApp 085717174000 📲
Email javacable07@gmail.com



LIYCY-TP 8x2x0,75mm Multicore screen twisted pair cable



LIYCY-TP 8x2x0,75mm Multicore screen twisted pair cable

APPLICATION
This cable is suitable to be used as control and signal cable in the electronics and measurement equipments. The pair twisting of the cores ensuring the exact data transmission, the braided copper wire screen protects the cables against electromagnetic disturbance and outside interference.

Construction
Stranded bare copper conductor, fine wire
Strand structure as per IEC-60228, class 5
PVC insulated
Core identification : Colour coded
Two cores twisted in pair, pairs stranded in layers
Film wrapping
Tinned copper braided screening, approx. 85% coverage
PVC outer sheath
Sheath colour : grey

Brand
Delta / SMI ( diantara 2 brand ,tergantung ketersediaan stock )
Size
8x2x0,75mm
Price
IDR 104.300 / meter

👉 MOHON DIBACA SEBELUM ORDER / MEMBELI 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga tertera berlaku untuk per meter dan minimum order 25 meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
(karena sekian banyak item admin tidak selalu update di etalase ).
✅ Silahkan call/chat sebelum order/membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING
WhatsApp 085717174000 📲
Email        javacable07@gmail.com

Tokopedia 👇
LIYCY-TP 8x2x0,75mm

   Terimakasih atas kerjasamanya

TOPSOLAR PV DUAL H1Z2Z2-K TÜV and UL solar PV cable



TOPSOLAR PV DUAL H1Z2Z2-K TÜV and UL solar PV cable
Topsolar® H1Z2Z2-K PV Kabel type ini cocok untuk instalasi photovoltaic. Kabel sangat fleksibel, dan cocok untuk digunakan di lokasi basah dan lembab. Diindikasikan secara khusus untuk sambungan antara panel photovoltaic dan dari panel ke inverter.

TOPSOLAR PV DUAL H1Z2Z2-K cable performance
Applications
Solar PV installations.
Conductor
Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.
Insulation
Low smoke halogen free (LSHF) rubber (XLEVA type according to UL / E16 according to TÜV).
Outer sheath
Low smoke halogen free (LSHF) rubber (XLEVA type according to UL / E16 according to TÜV). Black colour.
Electrical performance
Low voltage 1,5/1,5 ( 1,8) kV DC · UL 2000V Type PV/RHW-2 · UL 600 V USE-2.
Standard
UL 4703 PV WIRE / UL 44 USE-2 / EN 50618 / IEC 62930 / UTE C 32-502 .
Approvals
UL LISTED / TÜV / RETIE / CE / RoHS
CPR Construction Products Regulation
Cca -s1b,d2,a1

Thermal performance
Maximum service temperature: 120ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC.
Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.
Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2. Reaction to fire CPR: Cca -s1b,d2,a1 according to EN 50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent. UV Resistant based on EN 50618 and UL 2556.
Ozone resistant based on EN 50618.
Water performance
Water presence: AD8 submerged.

Size
Cross section in mm2
1x (...mm2) : 1,5/2,5/4/6/10/16/25/35/50/70/95/120/150/185/240

👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER :
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga tertera berlaku untuk per meter dan minimum order 25 meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
   (karena sekian banyak item admin tidak selalu update di etalase ).

✅ Silahkan call/chat sebelum order/membeli



JAVACABLECENTER
The center of your cable solution

CONTACT MARKETING
WhatsApp 085717174000 📲
Email         javacable07@gmail.com

  Terimakasih atas kerjasamanya

N2XRY 3x1,5mm Power Armored XLPE Cable



N2XRY CABLE
Cu/XLPE/PVC/SWA/PVC

Brand
Prysmian / Firstcable ( diantara 2 brand ,tergantung ketersediaan stock )
Size
3x1,5mm
Price
IDR  44.700 / meter

Application
Use as power cable,installed indoor,outdoor and direct burial with mechanical stress

Construction
-Annealed Bare Copper Conductor
-Extruded XLPE Insulated
-PVC Inner Sheath
-Galvanized Steel Wire Armour
-PVC Outer Sheath, black colour, UV Resistant
-Flame Retardancy: IEC-60332-1
-Standard: IEC-60502-1

ELECTRICAL DATASHEET
(lebih lengkap ,silahkan dilihat di pict tabel yang kami cantumkan di etalase)

👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER :
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga tertera berlaku untuk per meter dan minimum order 25 meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
   (karena sekian banyak item admin tidak selalu update di etalase ).
   Silahkan call/chat sebelum membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING

WhatsApp 085717174000 📲

Email         javacable07@gmail.com



Tokopedia 👇

N2XRY 2x1,5mm 0,6/1kv



YSLY Multicore Flexible Cable 300/500v

Application
This cable is used as control and connecting cables for tooling machinery, production lines, conveyor and assembly line as well as in construction plant.

This cable is ideal for medium loads and flexible application for free movements without forced movement and tensile load.
Suitable to use for installation in dry, moist and wet rooms, indoor.

Cores Code
JZ   Black cores with white numbering + yellow - green
OZ  Black cores with white numbering
JB   Coloured cores according to VDE 0293 + yellow - green
OB  Coloured cores according to VDE 0293

Construction
Conductor                   Stranded bare Cu conductor,fine wire
Conductor Structure  Strand structure as per IEC-60228, class 5
Insulation                    Special quality PVC
Sheath                         PVC, grey colour, flame retardant to IEC 60332-1

Electrical & Technical Data
Rated voltage                      300/500V
Test voltage                        1000VAC/1 min
Insulation Resistance         ≥ 20 MΩ x Km
Max. working temperature  70 C
Min. laying temperature      -5  C
Bending radius                   15 x cable diameter

Cross section (mm2)	Outer Diameter            approx (mm)	Cable Weight            approx (kg/km)
2 x 0.5	4.7	36
3 x 0.5	5.0	43
4 x 0.5	5.6	54
5 x 0.5	6.1	66
7 x 0.5	6.6	81
8 x 0.5	7.8	100
10 x 0.5	9.5	134
12 x 0.5	9.6	141
14 x 0.5	10	161
16 x 0.5	10.7	186
18 x 0.5	11.4	211
21 x 0.5	12	224
25 x 0.5	13.6	271
34 x 0.5	14.5	325
40 x 0.5	15.3	395
42 x 0.5	15.8	432
50 x 0.5	16.6	501
61 x 0.5	19.4	595
2 x 0.75	5.9	54
3 x 0.75	6.2	63
4 x 0.75	6.7	75
5 x 0.75	7.3	91
7 x 0.75	7.9	112
8 x 0.75	8.7	132
10 x 0.75	10.4	170
12 x 0.75	10.6	181
14 x 0.75	11.2	215
16 x 0.75	11.8	242
18 x 0.75	12.4	268
21 x 0.75	13.1	288
25 x 0.75	15	353
34 x 0.75	17	472
42 x 0.75	18.2	560
50 x 0.75	20	660
61 x 0.75	21.2	772
2 x 1	6.3	63
3 x 1	6.6	74
4 x 1	7.2	90
5 x 1	7.8	108
7 x 1	8.7	140
8 x 1	9.4	160
10 x 1	11.2	210
12 x 1	11.5	225
14 x 1	12.1	262
16 x 1	12.7	293
18 x 1	13.4	328
20 x 1	14.1	352
21 x 1	14.3	358
24 x 1	16.0	427
25 x 1	16.3	434
32 x 1	17.7	538
34 x 1	18.4	579
42 x 1	19.9	698
50 x 1	21.7	813
61 x 1	23.2	966
2 x 1.5	7.3	87
3 x 1.5	7.7	104
4 x 1.5	8.6	130
5 x 1.5	9.4	158
7 x 1.5	10.3	199
8 x 1.5	11.3	233
10 x 1.5	13.2	296
12 x 1.5	13.6	318
14 x 1.5	14.5	378
16 x 1.5	15.3	427
18 x 1.5	16.1	476
21 x 1.5	17.3	523
25 x 1.5	19.8	638
32 x 1.5	21.2	776
34 x 1.5	22.3	849
37 x 1.5	22.7	881
42 x 1.5	23.9	1011
50 x 1.5	26.4	1199
61 x 1.5	28.2	1422
2 x 2.5	8.1	115
3 x 2.5	8.8	146
4 x 2.5	9.6	179
5 x 2.5	10.6	221
7 x 2.5	11.7	284
8 x 2.5	12.6	323
10 x 2.5	15.0	419
12 x 2.5	15.5	458
14 x 2.5	16.3	534
16 x 2.5	17.4	613
18 x 2.5	18.3	682
21 x 2.5	19.6	750
25 x 2.5	22.4	912
34 x 2.5	25.4	1227
42 x 2.5	27.5	1486
50 x 2.5	30	1727
61 x 2.5	32	2061
3 x 4	10.6	221
4 x 4	11.8	277
5 x 4	12.9	339
6 x 4	14.3	410
7 x 4	14.7	438
3 x 6	12.1	302
4 x 6	13.3	374
5 x 6	14.8	468
7 x 6	16.1	596
3 x 10	15.3	495
4 x 10	17.0	629
5 x 10	18.7	767
7 x 10	20.7	998
3 x 16	17.9	725
4 x 16	19.9	925
5 x 16	22.1	1142
7 x 16	24.2

Silahkan dikirim inquiry type dan size kabel kebutuhannya,

Team marketing kami akan dengan senang hati membantu Anda  !!😊



👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga tertera berlaku untuk per meter dan minimum order 25 meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
✅ (karena sekian banyak item admin tidak selalu update di etalase ).
    Silahkan call/chat sebelum membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING

WhatsApp 085717174000 📲

Email         javacable07@gmail.com

Tokopedia  👇

JAVA CABLE CENTER

 Terimakasih atas kerjasamanya

NYY Single Core Power Cable ,Kabel Metal Indonesia (KMI)



NYY Single Core Power Cable ,Kabel Metal Indonesia (KMI)

NYY 0.6/1KV
CU/PVC/PVC
(Copper Conductor, PVC Insulated, PVC Sheathed)
Standard Specification : IEC 60502-1

Application
Power Cable : Indoors, cable trunking, outdoors and burried im the ground, for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.

✔️ Tipe     : NYY
✔️ Brand  : Kabel Metal Indonesia (KMI) / Kabelindo
✔️ Merupakan merk 4 besar (jaminan kualitas dan mutu terjaga).
✔️ Made in Indonesia
✔️ 💯% Original Product (kondisi baru)
✔️ Contruction : Cu / PVC / PVC
✔️ Detail Contruction: Copper Conductor, PVC Insulated, PVC Sheathed
✔️ Standard Specification : SNI IEC 60502-1
✔️ Max. Temperature : 60 derajat celcius
✔️ Rated Voltage : 0.6/1 (1.2)

👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga berlaku untuk per meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
   (karena sekian banyak item admin tidak selalu update di etalase ).

Silahkan dikirim inquiry type dan size kabel kebutuhannya,
Team marketing kami akan dengan senang hati membantu Anda !!😊

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING
WhatsApp 085717174000 📲
Email         javacable07@gmail.com

Tokopedia  👇

NYY 1x70mm2

 Terimakasih atas kerjasamanya

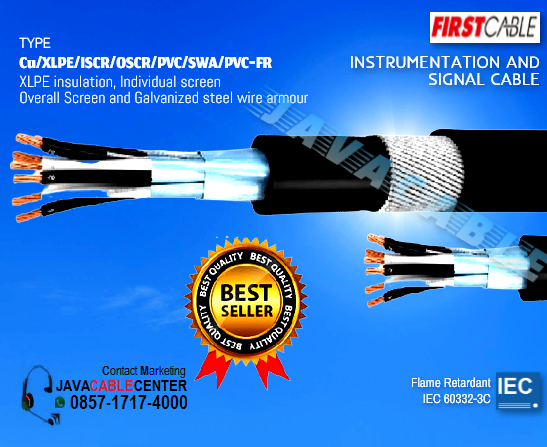

Instrument and Signal Cable XLPE/ISCR/OSCR/PVC-FR 300/500v



Instrument and Signal Cable XLPE/ISCR/OSCR/PVC-FR 300/500v

Application
For the transmission of measuring data signals in power stations and industrial plants
This cable is suitable for fixed indoor,outdoor,or underground installations.

Construction
Stranded plain copper conductor
Cross-linked Polyethylene insulation ( XLPE )
Core twisted in pairs or triads

Colour coding
pair : black/white, continuously numbered
triad : black/white/red, continuously numbered

Individual screen of plastic bonded aluminium mylar tape with tinned copper drain wire, approx. 25% overlapped, polyester tape wrapping
Pairs twisted in concentric layers
Overall screen of plastic bonded aluminium mylar tape with tinned copper drain wire, approx. 25% overlapped, polyester tape wrapping
Bedding of polyvinylchloride ( PVC )
PVC outer sheath, flame retardant to IEC 60332-3C, black or blue colour

Silahkan dikirim inquiry type dan size kabel kebutuhannya,

Team marketing kami akan dengan senang hati membantu Anda  !!😊



👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga berlaku untuk per meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
   (karena sekian banyak item admin tidak selalu update di etalase ).
   Silahkan call/chat sebelum membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING

WhatsApp 085717174000 📲

Email         javacable07@gmail.com



Tokopedia  👇

 Terimakasih atas kerjasamanya

Instrument and Signal Cable XLPE/ISCR/OSCR/PVC/SWA/PVC-FR 300/500v





Instrument and Signal Cable XLPE/ISCR/OSCR/PVC/SWA/PVC-FR 300/500v

Application
For the transmission of measuring data signals in power stations and industrial plants
This cable is suitable for fixed indoor,outdoor,or underground installations.

Construction
Stranded plain copper conductor
Cross-linked Polyethylene insulation ( XLPE )
Core twisted in pairs or triads

Colour coding
pair : black/white, continuously numbered
triad : black/white/red, continuously numbered

Individual screen of plastic bonded aluminium mylar tape with tinned copper drain wire, approx. 25% overlapped, polyester tape wrapping
Pairs twisted in concentric layers
Overall screen of plastic bonded aluminium mylar tape with tinned copper drain wire, approx. 25% overlapped, polyester tape wrapping
Bedding of polyvinylchloride ( PVC )
Galvanized steel wire armour
PVC outer sheath, flame retardant to IEC 60332-3C, black or blue colour

Silahkan dikirim inquiry type dan size kabel kebutuhannya,

Team marketing kami akan dengan senang hati membantu Anda  !!😊



👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga berlaku untuk per meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
   (karena sekian banyak item admin tidak selalu update di etalase ).
   Silahkan call/chat sebelum membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING

WhatsApp 085717174000 📲

Email         javacable07@gmail.com



Tokopedia  👇

XLPE/IS/OS/PVC/SWA/PVC-FR 8x3x1,5mm2
XLPE/IS/OS/PVC/SWA/PVC-FR 12x2x1,5mm2
XLPE/IS/OS/PVC/SWA/PVC-FR 6x2x1,5mm2
XLPE/IS/OS/PVC/SWA/PVC-FR 20x2x1,5mm2
XLPE/IS/OS/PVC/SWA/PVC-FR 2x2x1,5mm2



Terimakasih atas kerjasamanya

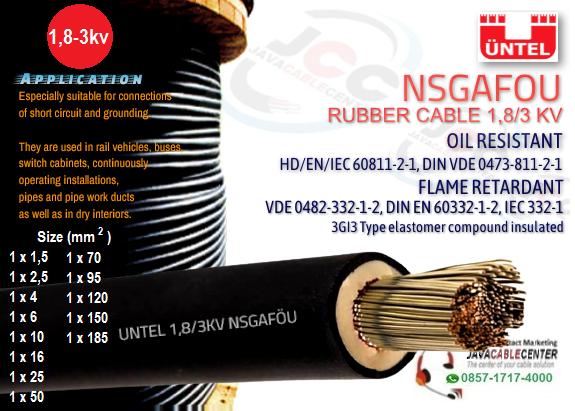

RUBBER CABLE NSGAFOU 1,8/3KV SINGLE CORE RUBBER CABLE , UNTEL

APPLICATION
Especially suitable for connections of short circuit and grounding.
They are used in rail vehicles, buses, switch cabinets, continuously operating installations, pipes and pipe work ducts as well as in dry interiors.

CABLE STRUCTURE

CONDUCTOR

Electrolytic annealed, class 2(NSGAOU) or class 5(NSGAF…) stranded plain copper wires (tinned conductor on request)
SEPARATOR

A suitable tape may be applied over the conductor, with semi-conductive layer for 3,6/6 kV
INSULATION

3GI3 Type elastomer compound
SEPARATOR

Appropriate material tape wrapped
SCREEN

Tinned copper wires braiding for CMÖU Type
SHEATH

5GM3 Type elastomer compound

COLOR

Black (other colors on request)

OPERATING CHARACTERISTIC

CONDUCTOR OPERATING TEMPERATURE

Max. 90ºC
CONDUCTOR SHORT-CIRCUIT TEMPERATURE

Max. 250ºC
WORKING TEMPERATURE

Fixed   : -40ºC … +80ºC
Mobile : -25ºC … +80ºC
MIN BENDING RADIUS

VDE 0298-3 Tab. 3
CURRENT CARRYING CAPACITIES

VDE 0298-4
FLAME RETARDANT

VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 332-1
OIL RESISTANT

HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1

OZONE RESISTANT

COLD RESISTANT

EX-PROOF

UV RESISTANT

TECHNICAL SPECIFICATIONS

NO.CONDUCTORS X CROSS SECTION (mm2	OUTER DIAMETER Approx. (mm)	COPPER FACTOR (kg / km)	CABLE WEIGHT (kg / km)
	NSGAÖU 0,6/1kV
1×1,5	5.5	14.4	48
1×2,5	67	24	62
1×4	7.5	38.4	89
1×6	8.5	57.6	113
1×10	10.5	96	161
1×16	13	153.6	251
1×25	14.5	240	385
1×35	16.5	336	509
1×50	18	480	693
1×70	20.5	672	896
1×95	22.5	912	1205
1×120	25	1152	1491
1×150	27	1440	1852
1×185	30	1776	2219
1×240	33	2304	2825
1×300		2880	3502
	NSGAFÖU 0,6/1kV
1×1,5	5.5	14.4	48
1×2,5	6.5	24	70
1×4	89	38.4	106
1×6	10.5	57.6	142
1×10	11.5	96	206
1×16	14	153.6	277
1×25	15.5	240	417
1×35	17.5	336	544
1×50	19.5	480	733
1×70	22.5	672	962
1×95	25	912	1307
1×120	27.5	1152	1631
1×150	30.5	1440	2007
1×185	33.5	1776	2456
1×240	37.5	2304	3087
1×300		2880	3875
	NSGAÖU 1,8/3kV
1×1,5	6.5	14.4	62
1×2,5	7	24	78
1×4	7.5	38.4	97
1×6	89	57.6	122
1×10	11.5	96	171
1×16	14	153.6	277
1×25	15.5	240	417
1×35	17.5	336	544
1×50	19.5	480	733
1×70	22.5	672	962
1×95	25	912	1307
1×120	27.5	1152	1631
1×150	30.5	1440	2007
1×185	33.5	1776	2456
1×240	37.5	2304	3087
1×300		2880
	NSGAFÖU 1,8/3kV
1×1,5	9	14.4	108
1×2,5	10	24	138
1×4	10.5	38.4	161
1×6	11	57.6	189
1×10	12	96	245
1×16	14.5	153.6	369
1×25	16.5	240	507
1×35	18	336	643
1×50	19.5	480	820
1×70	21.5	672	1059
1×95	24.5	912	1417
1×120	26	1152	1691
1×150	27.5	1440	2007
1×185	29.5	1776	2385
	NSGAFÖU 3,6/6kV
1×1,5	9.5	14.4	119
1×2,5	10.5	24	150
1×4	12	38.4	201
1×6	13	57.6	246
1×10	14.5	96	323
1×16	15.5	153.6	404
1×25	17.5	240	547
1×35	19	336	686
1×50	21	480	891
1×70	23	672	1137
1×95	26.5	912	1538
1×120	28.5	1152	1851
1×150	30.5	1440	2212
1×185	33	1776	2643



Silahkan dikirim inquiry type dan size kabel kebutuhannya,

Team marketing kami akan dengan senang hati membantu Anda  !!😊



👉 CATATAN PENTING YANG HARUS DIPERHATIKAN SEBELUM ORDER 👈
✅ Kami hanya menjual barang baru dan original product
✅ Selain size yang tercantum kami juga ready size lainnya.
✅ Harga berlaku untuk per meter
✅ Harga dan Stock sewaktu-waktu dapat berubah mengikuti perubahan harga factory
   (karena sekian banyak item admin tidak selalu update di etalase ).
   Silahkan call/chat sebelum membeli ya..

JAVA CABLE CENTER
The center of your cable solution

CONTACT MARKETING

WhatsApp 085717174000 📲

Email         javacable07@gmail.com



Tokopedia  👇

NSGAFOU 1x6mm

NSGAFOU 1x35mm

NSGAFOU 1x50mm



Terimakasih Atas Kunjungan Anda
